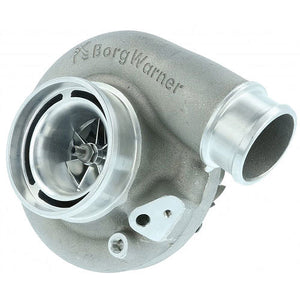

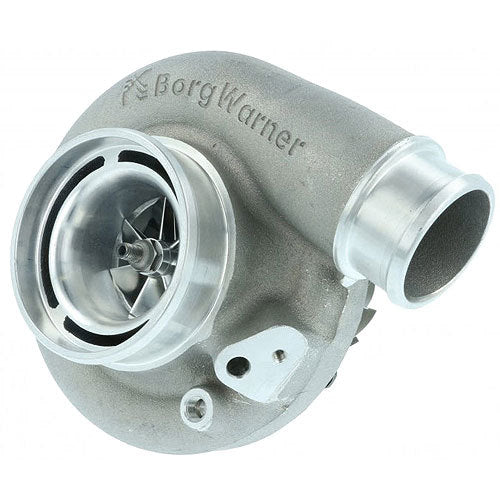

BorgWarner S366 SX-E Turbocharger Supercore

Rated @ 875HP

80/74mm Turbine Wheel

Borg Warner Turbo Systems is pleased to announce the release of the SX-E Supercore assemblies for gasoline & diesel performance applications.

S300 SX-E Supercore features:

• 360 degree thrust bearing
• Compressor cover integrated speed sensor port and pre-machined boost port
• Flexible compressor cover outlet options (S300SX-E only)
• Forged milled (billet) compressor wheels with extended tip technology
• Optimized compressor stage aerodynamics
• Interchangeable with existing SX turbine housings

Borg Warner Supercore assembly consists of the entire turbocharger minus turbine housing. All SX-E Supercores come with turbine housing mounting hardware, clamp plates, cap screws and mounting gaskets. Speed sensor and turbine outlet V-band are not included. Choose a turbine housing from Borg Warner factory housings as well as aftermarket custom cast performance housings.

Compressor:

• Borg Warner 4" Inlet/2.5" outlet Ported Compressor Housing
• Integrated Speed Port (Sensor Not Included)
• 66/91mm Billet Compressor Wheel w/ Extended Tip

Turbine:

• 80/74mm Turbine Wheel
